OS X 10.9.1 Mavericks on MSI G31TM-P21 Hackintosh | NVIDIA GeForce GT 640 | X5450 3 GHz Quad-Core Xeon LGA 771 to LGA 775 Mod |

About This Mac Overview: Processor=3 GHz Quad-Core Intel Xeon, Memory=4 GB 800 MHz DDR2 SDRAM, Graphics= NVIDIA GeForce GT 640 1024 MB, Serial Number=XXXXXXXXXXXXX, Software= OS X 10.9.1 (13B42)
Hackintosh with LGA 771 to LGA 775 Mod

OS X with modified LGA 771



The purpose of this post is two fold; showcasing the ease and compatibility of modifying an LGA 771 Xeon CPU for use with an LGA 775 motherboard, and continued support for G31 chipsets with OS X 10.9.1 Mavericks with TonyMacs UniBeast and MultiBeast installer packages. In addition I would like to highlight the NVIDIA GT 640 as an affordable, mid range, OS X compatible, graphics card.



Intel Xeon Logo, Intel Xeon Processor X5470 (12M  Cache, 3.33 GHz, 1333 MHz FSB)
ark.intel.com

Modifying the Processor and Motherboard to accept 771 CPU:


A cheap way to build a budget PC or Hackintosh is to perform a modification to both the Intel LGA 771 Xeon CPU and LGA 775 motherboard. These two components can be purchased on eBay for extremely affordable prices. Last week I was able to pick up an X5450 (3.0 GHz, 12 MB Cache, 1333 MHz FSB) on eBay for $35.00. Overclock.net has an excellent overview of this modification. The Intel Xeon X5450X5460 and X5470 should all be compatible with a motherboard that supports Q9000 series Quad-Core LGA 775 CPU's.

modification sticker applied to a xeon LGA 771 CPU for use with LGA 775 socket
overclock.net
showing modified LGA 775 socket to accept LGA 771 xeon modified CPU
overclock.net
This build confirms that an X5450 Xeon Quad-Core processor will be fully compatible after modification, with an MSI G31TM-P21 motherboard. After installation, the motherboard successfully completed POST, and recognized the CPU immediately. After booting up the first time into OS X 10.9.1 I found that the org.chameleon.Boot.plist file needed to be modified to allow execution of 64 bit code using arch=x86_64 as a boot flag.

system profiler Mac Pro Hardware Overview Hackintosh Model Name: Mac Pro Model Identifier: MacPro3,1 Processor Name: Quad-Core Intel Xeon Processor Speed: 3.00 GHz Number of Processors: 1 Total Number of  Cores: 4 L2 Cache: 12 MB Memory: 4 GB Bus Speed: 1.33 GHz Boot ROM Version: MultiBeast.tonymacx86.com SMC Version (system): 1.30f3

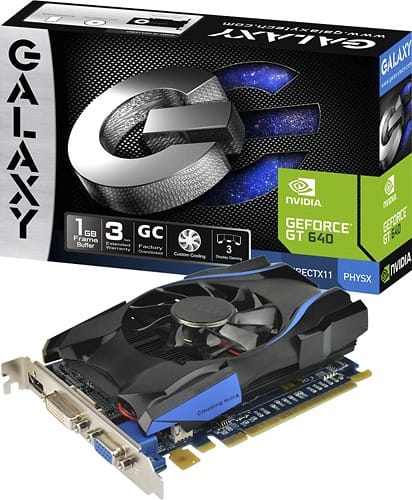

NVIDIA GeForce Galaxy GT 640 in OS X 10.9.1 Hackintosh


Despite the many reviews and testimonials that the GT 640 will work OOB with OS X 10.9.1, my build required a few tweaks to get this card to boot. Initially the system appeared to boot to OS X however the display went black and went into power saver mode. This was most likely because the graphics card stopped sending a video signal.  Using the boot flag npci=0x3000 and GraphicsEnabler=No I was finally able to get this card to boot past the white and fatally black screen. It would appear that this card is fully supported. Launchpad and Dashboard animations look great.

Geekbench Score

X5450 Geekbench Score Single-Core Score=1690 Multi-Core Score=5677
